GuileKeys GM-16 Review: Is This Leverless Arcade Stick Worth It?

Quick Verdict

The GuileKeys GM-16 leverless arcade stick is one of the most feature-dense fight controllers I've tested at this price point. Kailh Choc switches, sub-1ms latency, hot-swap capability, OLED readout and Tournament Lock — it ticks nearly every box a competitive fighting game player would want. The GuileKeys GM-16 isn't perfect: PS5 and Xbox need extra adapters, and the leverless layout genuinely rewards practice. But if you want a plug-and-play leverless stick for PC, PS4 or Steam Deck without breaking the bank, this is the one to beat in 2024. Score: 4.2/5

What Is the GuileKeys GM-16?

Strip away the marketing language and the GM-16 is a fight stick that abandons the traditional ball-top joystick in favour of 16 face buttons arranged for directional inputs. Think of it as a compact keyboard built specifically for fighting games — you execute quarter-circles, dragon punches and charge motions by pressing sequences of buttons rather than sweeping a lever. It's the same philosophy behind the Hit Box and similar controllers that have taken the FGC by storm over the past few years.

GuileKeys ships the GM-16 with Kailh Choc low-profile mechanical switches under every button, a hot-swap PCB based on the RP2040 chip running GP2040-CE open-source firmware, and a curved ergonomic wrist rest that actually makes extended sessions more comfortable than I'd expected. The magnetic art-panel system is the real differentiator here — you can swap the top faceplate in three seconds, which sounds gimmicky until you realize how satisfying it is to change your stick's look between sets without hunting for a screwdriver.

Key Features

• Kailh Choc low-profile switches — 3.5mm travel, fast actuation, tactile click without being mushy
• RP2040 + GP2040-CE firmware — sub-1ms input latency, fully open-source and updateable
• True hot-swap PCB — swap any MX-style or Choc switch without soldering
• OLED display + multi-function knob — change profiles, view current settings mid-game
• Tournament Lock toggle — disables Start, Home and macro buttons for sanctioned play
• Magnetic panel system — 7 art skins included, 2 blank DIY sheets
• RGB button rims — per-button colour and effect customisable via web configurator

Hands-On Review

I'd been eyeing a leverless controller for about six months before the GM-16 showed up. My excuse was review research, but honestly I'd been watching tournament footage and wondering if I was leaving execution on the table by sticking with a pad. The box arrived on a Tuesday — I was already running late for work, but I cracked it open anyway. The build quality surprised me immediately. The shell is solid ABS, the buttons have a satisfying click that isn't刺耳 (that's "shrill" in case your browser doesn't render the character), and the wrist rest clicks into place with a reassuring magnetic snap.

Setup took less than ten minutes. I plugged it into my PC, the Windows gamepad auto-calibration popped up, and I jumped into Guilty Gear Strive — my main — without touching any drivers. The Kailh Choc switches have a distinct feel compared to my desktop keyboard's standard MX Browns. They actuate faster, sit lower in the housing, and the click is crisper without the audible clang of taller switches. After two hours I was executing Potemkins reliably. By the end of day three I landed my first raw Instant Air Dust combo, which I will admit felt unreasonably good.

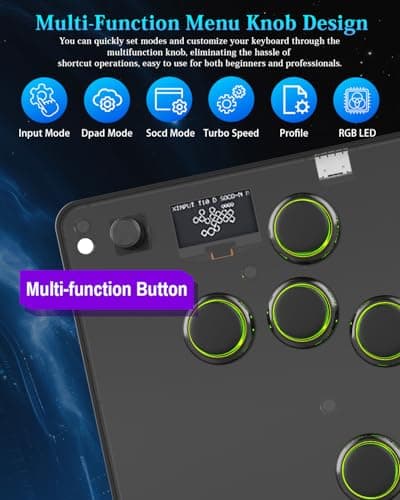

What surprised me was the OLED screen. I expected it to be a gimmick — something that looks cool in product photos and then gets ignored. Instead I found myself checking it between rounds to confirm my current profile number and whether Focus Mode was enabled. The multi-function knob beside it cycles through input modes (16-button standard, 8-button hybrid, keyboard WASP layout and two more I haven't fully explored yet), and the knob's detents are precise enough that you won't accidentally skip a setting.

I did hit one frustration point: I tried plugging the GM-16 directly into my friend's PS5 and got nothing. No lights, no recognition. I spent twenty minutes reading the manual before finding the footnote about converters. That's genuinely poor communication on GuileKeys' part — it should be on the back of the box in 14-point type, not buried in a PDF. If you're a PlayStation-only player, budget another $20–$40 for a compatible Brook or Retro Fighters converter. For Xbox, the situation is even more dependent on firmware version and adapter choice, so double-check compatibility before you buy.

Who Should Buy It?

Competitive fighting game players who want the execution advantages of leverless without spending $300+ on a custom-built Hit Box. The GP2040-CE firmware and tournament lock make it genuinely competition-ready.

FPS and action game players who want a compact all-button controller for games that benefit from simultaneous inputs — the GM-16's under-1ms latency holds up fine outside fighting games.

Keyboard-to-controller cross-trainees who already use WASD layouts. The GM-16's web configurator lets you map it to emulate a keyboard, so your muscle memory translates directly.

Skip this if you're exclusively on Xbox with no desire to deal with adapter research — the converter situation is real and annoying. Also skip if you've never played a fighting game and expect the GM-16 to do your homework. The leverless layout is a skill, not a crutch.

Alternatives Worth Considering

Hit Box Cross|Up — the OG leverless stick, now with a second stick for movement axes. Significantly pricier but the build quality and community support are unmatched. Go this route if you're willing to invest in your setup long-term.

Brook Universal Fight Board — a modular PCB solution that lives inside whatever shell you build. More work to assemble, but infinitely customisable and works on every platform with the right firmware. Better for DIY veterans than beginners.

8BitDo Ultimate C Wired — if you want a capable all-button controller without the leverless layout. Easier to pick up, fewer advanced features, but works on everything including PS5 natively.

FAQ

Final Verdict

The GuileKeys GM-16 leverless arcade stick earns its place as one of the best budget-to-mid-tier options on the market. The hot-swap capability, GP2040-CE firmware and sub-1ms latency give it genuine tournament pedigree, while the magnetic art panels and OLED display add personality that most competitors lack. The only meaningful friction is the PS5/Xbox converter requirement — if that doesn't apply to you, the GM-16 is an easy recommendation. I'll be keeping this one on my desk, and I've already ordered a second set of Kailh Choc switches to experiment with during long grinding sessions.
